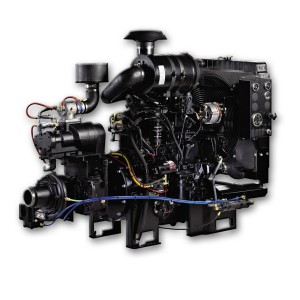

Waterous 500-140-DC

The Waterous 500-140-DC integrated crossmount CAFSystems™ combine the engine, transmission, water pump and air compressor into one, single, skid−mounted CAFS unit packed with powerful fire suppression capabilities for any size department.

CAFSystem Components

  • GHH Rand 140 sCFM (4.0 m3/min)
  • Aquis™ 2.5 Foam Proportioner available
  • Electric Auto-Sync Balancing System



Pump / Transmission Specifications

  • Waterous  CLVT centrifugal water pump, gray iron case, bronze impeller, stainless steel shaft and maintenance-free mechanical seal.
  • 4-inch NPT Intake
  • Waterous VPOS Oil-Free Primer
  • Gear-Drive, Direct-Drive T Series Transmission

Engine Specifications

  • John Deere, model 4045TF150, four-cylinder, turbocharged, liquid-cooled with variable speed governor, delivering a 115 horsepower (85 kW), 276 cu. in. (4.5L) displacement, four-cycle, diesel fueled.
  • Lubrication system with oil pressure warning light and spin-on oil filter. An extension hose is installed on the engine oil drain with a valve located at the oil pan and a plug installed in the end of the hose to facilitate oil changes.
  • Heavy-Duty exhaust muffler
500-140-DC FLOW
GPM 250, 350, 500
l/min 1000, 1300, 2000
l/sec 16.5, 21.5, 33
SCFM 120
M3/min 3.4
500-140-DC PRESSURE
PSI Bar kPa MPa
Water 150, 200, 250 10, 14, 17 1000, 14000, 17000 1.0, 1.4, 1.7
Air  125  8.6  860  .86
