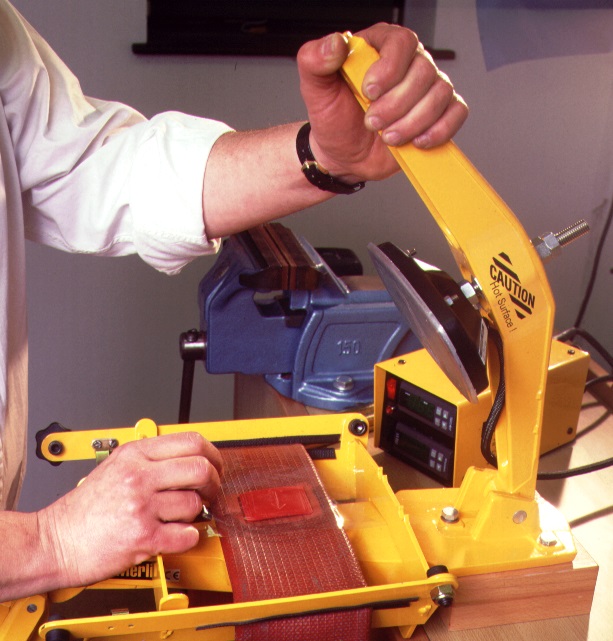

Stenor Merlin Vulcaniser

The Stenor Merlin features:

Temperature Controller with digital display of platen temperature and easy adjustment of the set point. Accurate control (±1 o C) is achieved by a K-type thermocouple sensor on the platen close to the repair. The sensor is failsafe (i.e. no heating) and an error message is given in the event of sensor failure.

Timer with a digital display controls both heating and cool-down time and sounds an alarm when the total cycle is complete. The timer turns off the power supply to the heating unit, so the vulcaniser can be safely left unattended.

Pressure adjustment is easily achieved by a few turns of two nuts and a locknut.

Manual/Automatic operation can be selected by the operator.

The heating unit platen utilises a semiconductor PTC element. These responsive elements
reduce their power output as their temperature increases, giving the benefits of:

Short preheat time
Long element life
Minimum temperature “overshoot”

Robust Construction
The frame is an assembly of four aluminium castings, linked together with steel pins, and a rubber pad. The frame is designed to allow the Stenor clamp to apply a constant pressure to the repair area of the hose during the vulcanisation process by use of a strong
compression spring.

The Stenor Merlin can be configured for 100–240V ac and 220-240V ac electricity supplies.
