Compact Fire-Fighting pump with highest performance in its class.
New compact design and low gravity for your safety operation, and new engine that delivers high performance at low cost.
SHIBAURA proudly announces new multi-purpose economic, high-performance Portable Fire-Fighting Pump to protect your life, property, and natural resources from Fire.

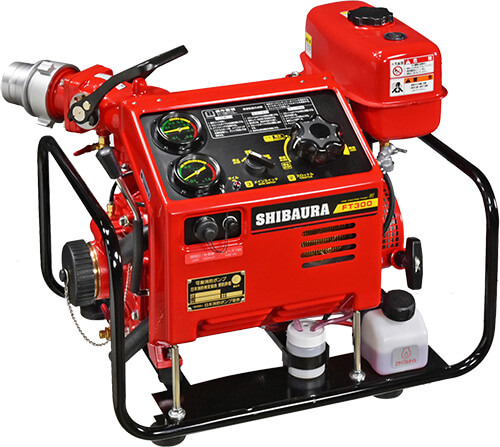

FT300-A is a compact Fire-Fighting pump combines high performance with simple design.
|DISCHARGE PRESSURE||0.5 MPa, 568 L/min, 1m suction head
0.5 MPa, 550 L/min, 3m suction head
0.8 MPa, 318 L/min, 1m suction head
0.8 MPa, 300 L/min, 3m suction head
1. FUEL FEEDING SYSTEM (separate fuel feeding system)
FT300-A is equipped with Separate Fuel Feeding System which is commonly used system in automobiles.
Provide you with optimum gasoline/oil mixing rate under any circumstances at any time.
The “automatic engine stop system” automatically stops the engine if the oil level is too low, and let you to know the decrease level of oil by displaying LED light on OK monitor.
2. DIRECT-ACTING ENGINE GOVERNORS
Governor for providing optimum oil supply rate according to the pressure level. Oil supply rate is always appropriate even if you attached various kinds of nozzles, as the DIRECT-ACTING ENGINE GOVERNORS can provide optimum oil supply rate according to the supply pressure level.
The maximum efficiency and lower exhaust gas which gives you much longer engine durability.
3. AUTOMATIC CHOKE SYSTEM FOR CARBURETOR
An air temperature sensor and engine temperature sensor adjust choke valve automatically for your easy engine starting.
Auto – Decompression Recoil Pull for your easy manual starting.
Unlike conventional method which release the pressure, the engine can be operated at full power at all time during the discharge.
5. FULL-COVERED MODEL
The model has full covered side for your comfortable, safety and convenience operation with one-piece full open cover designed for simple access to the engine.
Easy cover removal without any tools for your easy maintenance.
6. INTEGRATED CONTROL PANEL
All the control switches are integrated into one single open panel which gives the operator an excellent visibility and faster operation speed.
7. OILLESS VACUUM PUMP
Oilless vacuum pump uses high-strength carbon blades which does not need lubricating oil inside the pump.
Harmless method to human and environment, as its doesn’t discharge oily water on the ground.
8. QUICK VALVE
Square frame Quick Valve Lever which allow you to operate valve faster and easier.
9. ONE-TOUCH DRAIN COCK
Fuel tank has one-touch drain cock to drain all the fuel from the carburetor at the time of long storage.
Also have a waste fuel/oil Catch tank as standard equipment.
