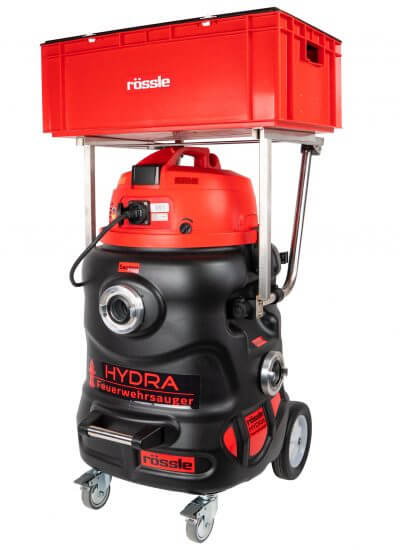

Rössle AG has developed an additional package for the HYDRA FD vacuum cleaner especially for the needs of company and plant fire departments: HYDRA-Z.
Shouldered in a removable box with lid directly on the HYDRA, the accessories include nozzles, hose and stainless steel suction tubes in oil-resistant quality. The Storz connections on the tank of the FD vacuum cleaner can be closed with the blind coupling and the ball valve in order to be able to safely transport small quantities of vacuumed liquid in the approx. 70 litre tank of the unit for disposal.
Spills of coolants or hydraulic oil are a frequent occurrence, especially in industrial production facilities. With the HYDRA-Z you are fully prepared for these applications.
|
Suction capacity
|
20,000 l/h
|
|
Performance OSM turbine
|
1200 watt
|
|
Performance sewage pump
|
1500 Watt
|
|
Total weight (HYDRA, box with equipment and mount)
|
46 kg
|
|
Suction hose and drain hose
|
12 meter length each, ø 50 mm
|
|
Dimensions (incl. accessory box and mount)
|
60 x 63 x 108 cm (width x depth x height)
|
- Ideal equipment for operations with leaked oils, coolants or hydraulic fluids
- Mechanical suction power regulation
- C-Storz couplings on suction and drain side
- 12 meter long suction and drain hoses
- Extension hoses for suction and drain side for a total range of 24 meters
- Robust materials and compact design
- Large 70 litre tank
- No service intensive electronics
- Continuous operation with 5 kVA DIN generators
- Power cable length of 10 metres including 16 A Schuko plug Protection class IP68 with bayonet retaining ring and protective cap
- Residual current circuit breaker
- Electrical testing DIN VDE 0701-0702
- Working noise of 64 dB (A)
Set includes:
- HYDRA FD vacuum cleaner including standard accessories
- Storage box with lid
- Oil-resistant suction hose with C-Storz coupling, 4 m
- Stainless steel suction tube, ø 40 mm
- Mobile floor nozzle, ø 40 mm
- Plastic joint nozzle
- Blind coupling and ball valve for closing the couplings on the suction side and the drain side of the FD vacuum cleaner
