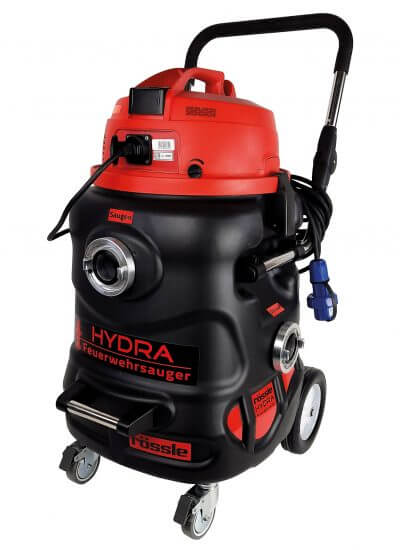

Reliability, great flexibility in use and endurance properties proven over many years are the strengths of the HYDRA FD vacuum cleaner from RÖSSLE AG. Ideally matched components enable a stable and compact design. The device convinces with a robust tank and a powerful suction head. Optimized handles as well as large wheels result in excellent transportability.
The suction turbine installed in the suction head has a suction capacity of up to 20,000 l/h. The sewage pump in the tank not only moves normal water, but also transports and pumps heavily polluted, contaminated water and sludge with a blockage-free solid passage of 50 mm. As a real all-rounder, the HYDRA FD vacuum cleaner is the solution for the real problems.
|
Suction capacity
|
20,000 l/h
|
|
Performance OSM turbine
|
1200 watt
|
|
Performance sewage pump
|
1500 Watt
|
|
Weight (without accessories)
|
33 kg
|
|
Suction hose and drain hose
|
12 meter length each, ø 50 mm
|
|
Dimensions (folded handle)
|
47 x 60 x 84 cm (width x depth x height)
|
|
Dimensions (extended handle)
|
47 x 60 x 97 cm (width x depth x height)
|
- normous handiness and excellent rolling characteristics
- Flexible handle bar adjustable at the touch of a button – reduces the loading height and facilitates transport
- Mechanical suction power regulation
- C-Storz couplings on suction and drain side
- 12 meter long suction and drain hoses
- Extension hoses for suction and drain side for a total range of 24 meters
- New from 2023: Hose reinforcement / kink protection for the suction hose
- Robust materials and compact design
- Large 70 litre tank
- No service intensive electronics
- Continuous operation with 5 kVA DIN generators
- Power cable length of 10 metres including 16 A Schuko plug Protection class IP68 with bayonet retaining ring and protective cap
- Residual current circuit breaker
- Electrical testing DIN VDE 0701-0702
- Working noise of 64 dB (A)
Set includes:
- HYDRA FD vacuum cleaner
- 12 m long suction hose
- 12 m long drain hose
- Two-piece suction tube, ø 50 mm
- Aluminium floor nozzle
