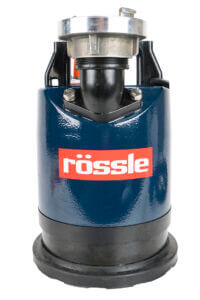

ROSSLE FLAT-ROSS submersible pump

Technical data:

  • Pumping capacity: 240 l/min // 14,400 l/h
  • Pump power: 400 watt
  • Grain size: ø 6 mm
  • Weight: 11 kg
  • Material: gray iron, aluminium, stainless steel, plastic
  • Dimensions: 23 cm x 32 cm (ø x height)

Possible application areas:

  • Mobile and stationary use
  • smaller quantities of water
  • Flat suction of residual water down to a shallow water level of 1-2 mm
  • in combination with the FD vacuum cleaners of the HYDRA series


  • 230 V 50 HZ alternating current
  • Connection: C-Storz coupling
  • Stable and compact design
  • For stationary and mobile use
  • Effective flat suction down to a shallow water level of 1-2 mm
  • Residual water extraction
  • Optionally with float switch
  • Maximum immersion depth of 20 m
  • Cable length of 10 m
  • Insulation class F and protection class IP 68
  • Plug with bayonet lock IP 68
Pumpendiagramm Tauchpumpe 100L

The diagram shows the pumping capacity of the Rössle submersible pump FLAT-ROSS in m³ per hour in relation to the pumping height.
