Technical data:
- Pumping capacity: 570 l/min // 34,200 l/h
- Pump power: 1,500 watt
- Max. delivery pressure: 1.8 bar
- Grain size: ø 8 mm
- Weight: 19 kg
- Material: stainless steel
- Dimensions: 17 cm x 48 cm (ø x height)
Possible application areas:
- Mobile and stationary use
- for large water masses
- Pumping clean water or screened sewage water
- Supplying water for fire-fighting
- Bridging greater distances and heights
- Can be used in the food sector
- Suitable for a pH range from 5-8
- in combination with the FD vacuum cleaners of the HYDRA series

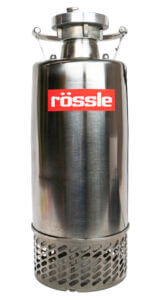

C-ROSS:
- 230 V 50 HZ alternating current
- Connection: C-Storz coupling
- Sturdy and robust design
- For stationary and mobile use
- Excellent for bridging heights
- Suitable for use in the food sector
- Optionally with float switch
- Maximum immersion depth of 20 m
- Cable length of 20 m
- Insulation class F and protection class IP 68
- Plug with bayonet lock IP 68
The diagram shows the pumping capacity of the Rössle submersible pump C-ROSS in m³ per hour in relation to the pumping height.
