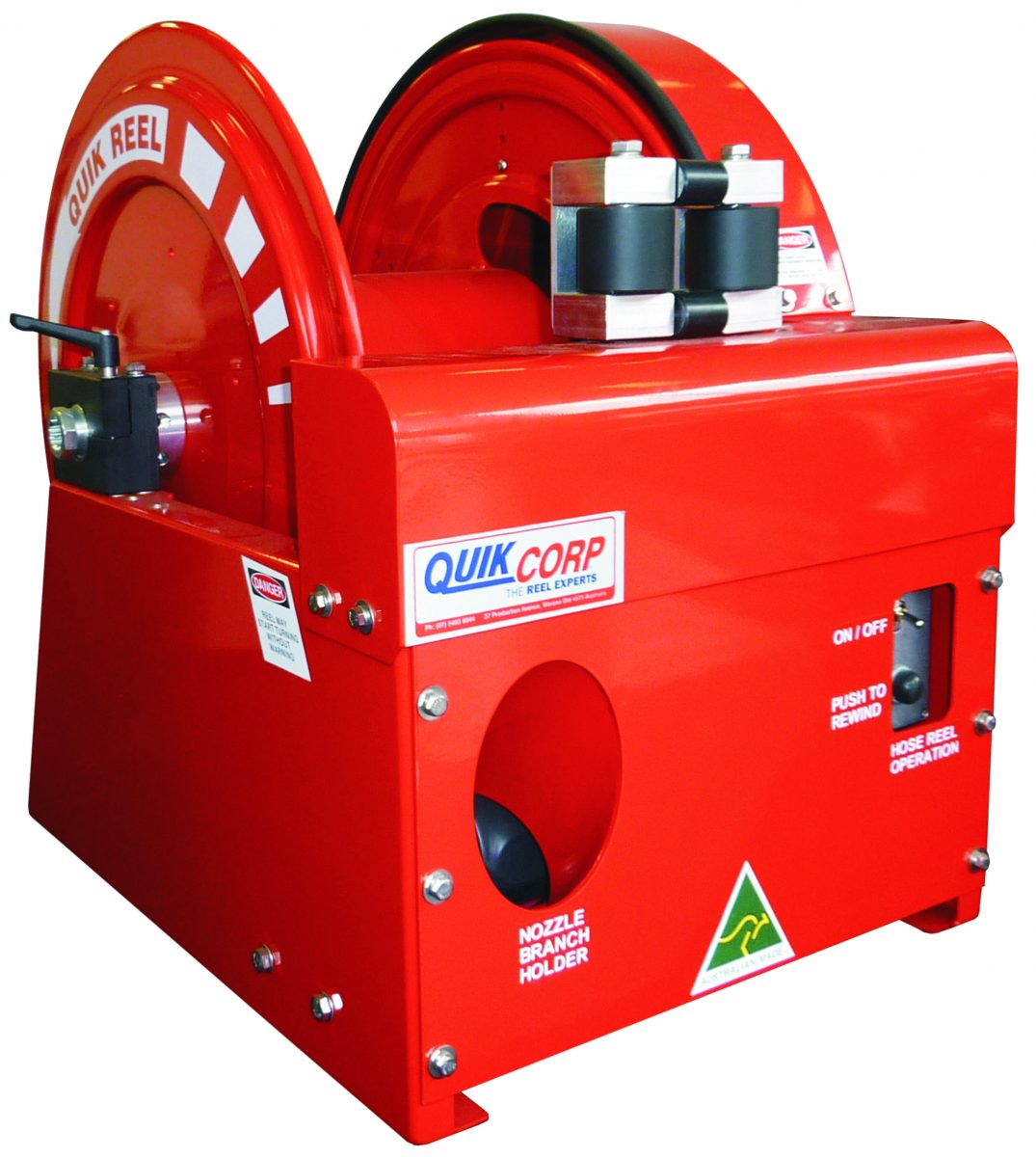

Quikcorp Self Guided Reel – RFR3

Quik Reel self-guiding reels have been produced to take the hard work out of rewinding long lengths of hose by providing a powerful and consistent retraction that greatly assists in hose retrieval.

The reel features our unique self-guiding “Archimedes” rewind action which ensures a fast, neat and hands-free rewind from many angles, every time. Built using the highest quality components, the unit provides a safe, effective and user-friendly rewind every time. The reel can also be retracted using a manual handle if required.

The unit features the most complete guarding system found on any hose reel, ensuring it is one of the safest on the market. All hose reels are powder-coated aluminium and are available in a select variety of colours to suit your vehicle.

As with all models in this series, this reel has the added bonus of being upgradeable at any stage without having to purchase a whole new reel. This reel can be upgraded to include a remote control retract action (RFR4) if necessary.

The manual reel is available in a range of sizes; standard (model RFR3), small (model RFRA3), large (model RFRB3) or extra large (model RFRC3).

All of the above ensures that you will always have the best hose reel solution for your fire fighting needs.

Self-Guided Hose Reel Specifications

  • 12V or 24V DC
  • Heavy duty electric motor
  • 80 Amp continuous duty Relay, on off switch and push button pre wired, fitted with a Anderson plug
  • Neat, hands-free rewind
  • Left or right hand waterway
  • 4 hose rollers
  • Hose feed at 180 degrees – Remove – reel can only feed at 45 Deg
  • Select range of colour choice
  • Aluminium
  • Friction brakes
  • Manual handle supplied

Hose Size Capacities

MODEL A
Length (overall)
B
Width (overall)
C
Height (overall)
Hose Capacity
1/2″ or 12.7mm ID
Hose Capacity
3/4″ or 20mm ID
Hose Capacity
1″ or 25.4mm ID
Weight
RFR 2,3,4 730mm 480mm 630mm 100m 60m 30m 33kg
RFRA 2,3,4 610mm 480mm 590mm 50m 30m N/A 31kg
RFRB 2,3,4 730mm 795mm 630mm 200m 100m 60m 40kg
RFRC 2,3,4 860mm 795mm 810mm 350m 200m 90m 52kg

Hose reel dimensions do not include the hose reel swivel; please add 100mm to overall width to include this.
