Quik Reel self-guiding remote control retractable hose reels offer the ultimate in features and performance.
The reel features our unique self-guiding “Archimedes” rewind action which ensures a fast, neat and hands-free rewind from any angle, every time.
The system is also fully retractable via remote control, offering the operator complete control over the hose during use. This greatly improves speed and efficiency, while reducing operator fatigue in dangerous situations.
Built using the highest quality components, the unit provides a safe, effective and user-friendly rewind every time. The reel can also be retracted using a manual handle if required.
The unit features the most complete guarded system found on any hose reel, ensuring it is one of the safest on the market. All hose reels are powder-coated aluminium and are available in a variety of colours to suit your vehicle.

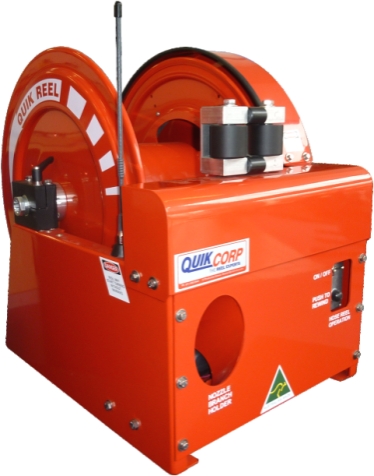

The Remote Control hose reel is available in a range of sizes; standard (model RFR4), small (model RFRA4), large (model RFRB4) or extra large (model RFRC4).
All of the above ensures that you will always have the best hose reel solution for your fire fighting needs.
Remote control hose reel specifications
- 12V or 24V DC
- Heavy duty electric motor
- Remote control retraction
- 80 Amp continuous duty Relay, on off switch and push button pre wired, fitted with a Anderson plug.
- Neat, hands-free rewind
- Left or right hand waterway
- 4 hose rollers
- Select range of colour choice
- Aluminium
- Reel lock – remove – no reel lock – only on the RFR1 range.
- Friction brakes
- Manual handle supplied.
Hose Size Capacities
| MODEL | A Length (overall) |
B Width (overall) |
C Height (overall) |
Hose Capacity 1/2″ or 12.7mm ID |
Hose Capacity 3/4″ or 20mm ID |
Hose Capacity 1″ or 25.4mm ID |
Weight |
| RFR 2,3,4 | 730mm | 480mm | 630mm | 100m | 60m | 30m | 33kg |
| RFRA 2,3,4 | 610mm | 480mm | 590mm | 50m | 30m | N/A | 31kg |
| RFRB 2,3,4 | 730mm | 795mm | 630mm | 200m | 100m | 60m | 40kg |
| RFRC 2,3,4 | 860mm | 795mm | 810mm | 350m | 200m | 90m | 52kg |
Hose reel dimensions do not include the hose reel swivel; please add 100mm to overall width to include this. Weights are measured without hose or nozzle on reel.
