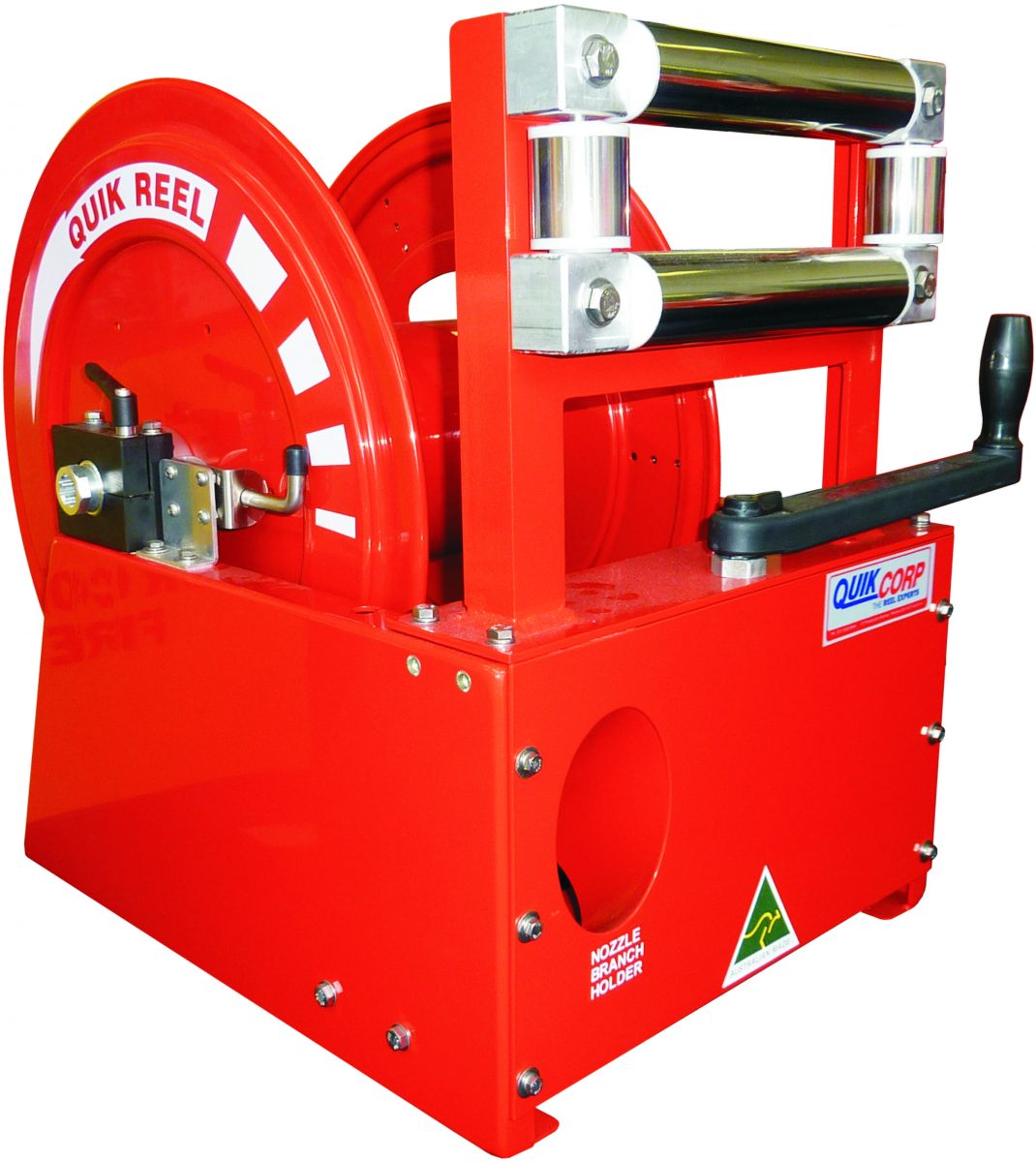

Quikcorp Manual Hose Reel – RFR1

Quik Reel Manual Reel is a high quality hose reel that provides the user with an easy and user-friendly rewind for all situations. The reel is manufactured to industry standards and includes all necessary features to ensure problem free use. The reel features the most complete guarding system found on any hose reel, ensuring it is one of the safest on the market. All hose reels are powder coated aluminium and are available in a select variety of colours to suit your vehicle.

As a bonus feature the manual reel can be upgraded into the powered (RFR2), self-guiding (RFR3) or remote control (RFR4) option at any time down the track if necessary.

The manual reel is available in two different sizes; standard (model RFR1) or small (model RFRA1)

All of the above features ensure that you will always have the best hose reel solution for your fire fighting needs.

Manual Hose Reel Specifications

  • Manual handle rewind
  • Left or right hand waterway
  • 4 hose rollers
  • Hose feed at 180 degrees
  • Select range of colour choice
  • Aluminium
  • Reel lock
  • Friction brakes

Hose Size Capacities

Length (overall)
Width (overall)
Height (overall)
Hose Capacity
1/2″ or 12.7mm ID
Hose Capacity
3/4″ or 20mm ID
Hose Capacity
1″ or 25.4mm ID
RFR 1 711mm 492mm 612mm 100m 60m 30m 18kg
RFRA 1 590mm 492mm 569mm 50m 30m N/A 16kg

Hose reel dimensions do not include the hose reel swivel; please add 100mm to overall width to include this.
