Landing Zone Site Kit

With all the red, blue and white flashing lights at an emergency scene the pi-lit® Landing Zone kit LED’s stand out in stark relief as flashing green. This enables the pilot to immediately see the obstacle-free LZ site. Low profile units that do not get blown away by the copter’s rotowash like cones do.

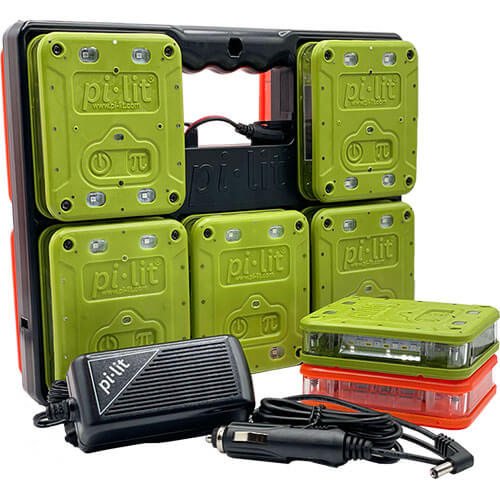

pi-lit® LZ Kit includes 5 radio-linked flares with both visible and infra-red LEDs. The flares are placed at the corners of a 100 foot (30 meter) square with one placed outside to designate wind direction OR inverted “Y” free of obstacles.

The flares flash in unison to create an identifiable “constellation” of either infra-red or visible flashing points. The operator may use any one of the 5 flares to control the entire group, changing from visible to infra-red with the push of a button.

Features and Specifications

Professional Rechargeable

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout. The point of using Lorem Ipsum is that it has a more-or-less normal distribution of letters, as opposed to using ‘Content here, content here’, making it look like readable English.

  • Powered by Lithium-Ion Rechargeable Battery
  • 6 hour recharge time from a completely dead battery
  • Standard configuration includes 16 High-Power Visible Green LEDs, 4 High-Power Infrared LEDs (880nm)
  • 36+ hours of continuous flash
  • Coordinated flashing pattern for easy recognition
  • Battery status check with push of a button
  • IP67 water and dust rating
  • 50,000 lbs (26,000 kg) crush strength

Purchase include

Carrying/Charging case, 5 Radio-Connected LZ Flares, 5 Ballasted Range Extender Bases, DC 12/24V Vehicle Plug, 110/240V Wall plug
