LGL-170A

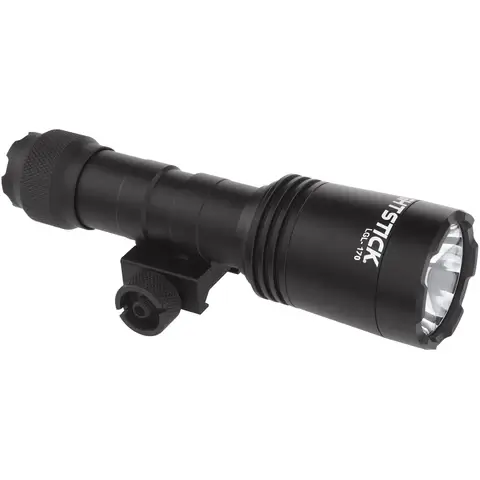

The LGL-170A rechargeable full-size long gun light kit is a complete weapon lighting system for your rifle, carbine, or shotgun. Made of 6061-T6 aluminum and hard anodized black, it features a super-bright LED rated at 1500 lumens with a 1.5-hour runtime. Designed around a high-efficiency deep parabolic reflector, the LGL-170’s tightly focused beam reaches out to 304 meters. The light comes installed with a standard tail cap switch and reversible thumb-screw Picatinny mount. It can alternatively be mounted with the included offset Picatinny mount, providing flexible options to clear front sights and other mounted equipment while allowing easy support hand activation.
Both the tail cap switch as well as the included 6″ remote pressure pad/switch feature momentary or constant-on modes. The kit also includes an RPS Picatinny rail mount and Nightstick-exclusive wire management rail clamp to prevent cable snags.
The rechargeable LGL-170 weapon light kit includes one 18650 lithium-ion battery, a single 18650 battery charger and a 2′ USB charging cable. As an added bonus, the LGL-170A also runs on a pair of CR123 batteries (sold separately).
Included Items:
- LGL-170 weapon light
- LGL-ENDCAP2 tail cap switch
- LGL-RPS2 remote pressure switch (6” cable)
- LGL-SM1 standard Picatinny mount w/thumb screw
- LGL-OM1 45º offset Picatinny mount w/thumb screw
- NS-PIC1 pressure switch rail mount
- NS-WM1 wire management clamp
- (1) 4700-BATT lithium-ion battery
- 4700-CHGR1 single battery charger
- 2’ NS-USB charging cable
- Allen wrench
- Alcohol prep pad
- Adhesive-backed Velcro mounting strip
- Instruction manual LGL-170
FEATURES
- LED technology
- Features both tail cap and 6″ Remote Pressure Switches
- Momentary or constant-on function
- Standard and offset Picatinny rail mounts
- Sharp focused beam for distance illumination
- Aircraft-grade 6061-T6 aluminum housing w/Type III hard-anodized finish
- Beam distance rated at 300 meters
- IP-X7 Waterproof
- Impact & chemical resistant
- Serialized for personal identification
- (1) 18650 battery, charger and 2′ USB cable (included)
- (2) CR123 batteries (optional)
- Limited Lifetime Warranty
SPECIFICATIONS
- UPC: 017398808835
- Flashlight Lumens: 1500
- High Lumens: 1500
- High Beam Distance (m): 300
- High Candela: 23,148
- Drop Rating: 2 m
- Water Rating: IP-X7 Waterproof
- High Runtime (h): 1.5
- Switch Function: Tail Cap Switch, 6″ Remote Pressure Switch – Momentary and Constant-On
- Light Source: LED
- Serialized: Y
- Case Material: 6061-T6 Aluminum
- Body Color: Black
- Quantity of Batteries: 1
- Power Source: Li-ion Rechargeable
- Backup Power Source: (2) CR123 (not included)
- Package Contents: Weapon light with standard Picatinny mount w/thumb screw and tail cap switch, Remote pressure switch (6” cable), 45º offset Picatinny mount w/thumb screw, pressure switch rail mount, wire management clamp, (1) 4700-BATT li-ion battery, single battery charger, USB cable, 2.5mm Allen wrench, Alcohol prep pad, Adhesive-backed Velcro mounting strip, Instruction manual
- US Patent(s) : 9713217
- Warranty: Limited Lifetime Warranty
DIMENSIONS
- Length: 5.5 in (140 mm)
- Width: 0.9 in (23 mm)
- Depth: 0.9 in (23mm)
- Weight: 7.5 oz (213 g)
- Diameter: 0.9 in (23 mm)
- Head Diameter: 1.5 in (38 mm)
