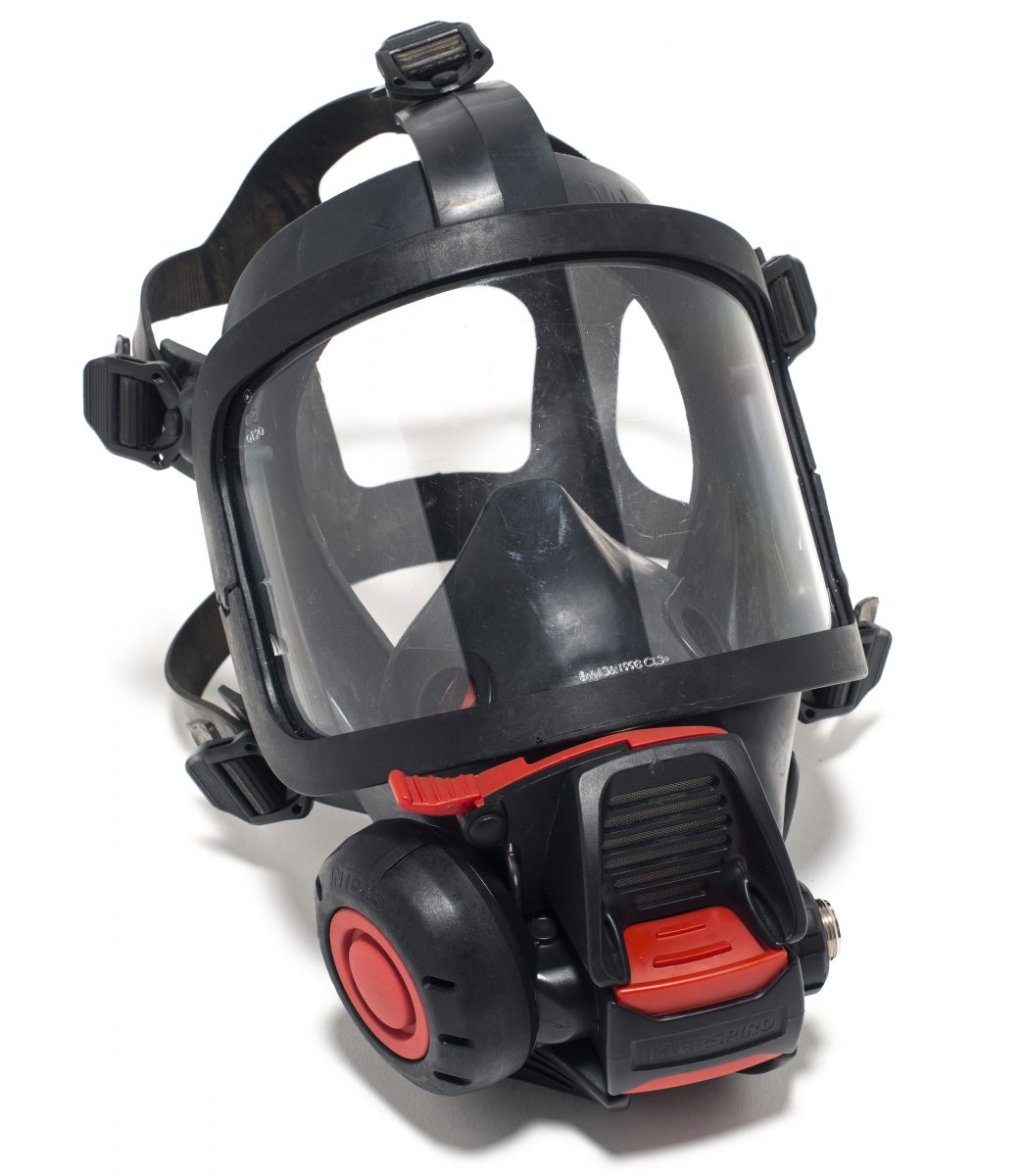

Inspire-H Ambient air hatch

The Inspire-H mask takes all the outstanding features from the S-H mask and adds the quick connection, providing an unique combination of ambient air hatch and quick connection.

The mask is equipped with an ambient air hatch enabling the user to have the mask fully donned and still breathe ambient air to save the compressed air in the cylinder. With a very simple operation, a push on the hatch cover, the air from the cylinder is activated.
With this solution the user is always sure to have a perfect seal. The risk for improper mounting of the breathing valve while wearing the mask is eliminated when it is kept correctly connected at all times. In addition, the breathing valve is always protected and never exposed to dirt, contamination and mechanical exposure.

The quick connection makes installing and removing the breathing valve very easy. To install the breathing valve, it is simply pushed into the mask and locks in place. To remove it, the two red buttons are pressed simultaneously and the breathing valve pulled out from the mask.

The mask and breathing valve design is very compact with no protruding parts which gives unrestricted visibility and reduce the risk of snagging and mechanical damage. The silent operation of the mask gives minimal noise interference and excellent communication possibilities.



  • Quick connection of breathing valve to the face mask
  • Breathing valve closes automatically when disconnected from face mask
  • Demand controlled and activated from inner mask providing excellent breathing performance
  • Purge button on breathing valve to increase air flow to the mask
  • Open ambient air hatch is indicated with a highly visible indicator arm
  • Prepared and compatible with voice communication systems, “Heads-Up Display” and spectacle kit
  • Ergonomic head harness with easily operated buckles



The standard version is made from natural rubber and has a 5-point head harness. This version is available in the three different sizes Standard size, Small size (S) and X-large size (XL).
The silicone version is available in Standard size.

There is also a version compatible with helmet adapters with a 4-point head harness and a top strap. This version is available in Standard size. When ordering this mask version, it is delivered including head harness, buckles and neck straps. But if it is ordered together with “Pre-delivery mounting of helmet adapter” (see “Accessories” below) it is delivered without head harness, buckles and neck strap.

Technical Specifications:

Approval : CE 89/686/EEC
Standard : EN136
Material : Natural rubber / Silicone (only M/L)
Material (2) : Visor – Polycarbonate
Connection : Quick connection to breathing valve
Connection (2) : M16 to breathing hose
Weight : 0,7 kg
