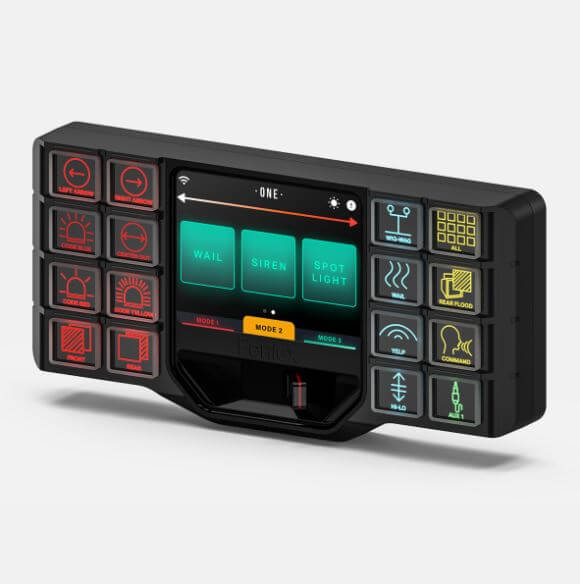

The Feniex One is the world’s first autonomous controller. Feniex Industries now brings the officer, the fleet manager and the installer a brand new product of incredible performance. The Feniex One champions functionality, ease of use, and streamlined installation. The next evolution in smart controllers goes beyond traditional standards with innovations that bridge the gap of automation. Transformative technology. The Feniex One.
*Purchasing without an obd2 plug-in will limit the functionality of the controller and require additional installation. Consult your Feniex Representative or Customer Support for more questions.
SPECIFICATIONS
- Max Current Draw: 60 Amps
- Operating Current Draw: 1 Amp
- Controller Cable Length: 15 Feet
- Relay Plug-in Cables: 1 Foot
- Programmable Buttons: x19
- Programmable Outputs: x32
- Programmable Inputs: x8
- Fusion Data Link Ports: x2
- Quad Serial Ports: x8
- Siren Power: 200 Watts Dual Tone
- Input Voltage: 10-18 Volts DC
- Dimensions of Controller: 7.3” x 1.13” x 3.13”
- Dimensions of Relay Box: 8” x 6.25” x 2.44”
- 2 Year Manufacturer Warranty
- Made in the USA: Austin, TX
INCLUDED
- 1x Feniex One Controller
- 1x Feniex One Relay
- 1x U-Shaped Mounting Bracket
- 1x USB Cable
- 1x RJ45/Ethernet Cable
- 4x Button Legend Sheets
- 3x 16 Pin Wire Harness
- 3x 8 Pin Wire Harness
- 1x 6 Pin Wire Harness
- 1x Power Cable Harness
- Feniex Controller Configuration Software
PRODUCT DETAILS
- All in one autonomous controller with integrated siren and light control
- Powered by an ARM A9 Quad Core Processor providing speed & reliability
- Built-in 200 Watt dual-tone siren with radio rebroadcast & audio commands
- Integrated 3-position programmable rugged pursuit slide switch
- 16 programmable push buttons with 5-color programmability
- Anti-glare MilSpec LCD touchscreen with brightness control
- LCD screen displays live vehicle health alerts and power settings
- 3 additional programmable push buttons built into LCD touchscreen
- Controller encased and protected in a rugged aluminum housing
- Feniex software system for user configurability and programming
- Integrated wifi connectivity for live field software & firmware updates
- Connects to Feniex Web, Feniex’s live fleet health monitoring system
- 32 programmable outputs rated at 5 amps each with short circuit protection
- Relay encased in rugged aluminum housing regulating heat disbursement
- Integrated GPS timing chip for vehicle to vehicle global pattern sync
- 8 programmable inputs with optional 12v+ or 12v- programmability
- 8 programmable Quad serial outputs for streamlined installation
- 15-foot plug-in microphone included for PA functionality
- Optional OBD2 plug-in module for vehicle auto triggers
- Easy field serviceability with plug-&-play connectivity
