Features
- Designed for ease, durability and serious optic performance

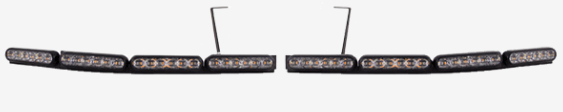

- mpower Fascia 4″ lights made with a durable silicone lens
- Reduces install time with 3-wire technology
- Functionality mimics the rear of a lightbar
- Available in single, dual or tricolor
- Non-bracket option available; parts sold separately
- Clear or stealth lens available, click here to learn more about stealth
Tech Specs
Specifications are subject to change based on different models & configurations.
Input Voltage Range: 9-32 Vdc
Amperage Draw:
- 0.36 Amps @ 12.8 Vdc (Flashing red)
- 0.62 Amps @ 12.8 Vdc (Peak red)
- 0.60 Amps @ 12.8 Vdc (Flashing amb, blue, green, white)
- 0.90 Amps @ 12.8 Vdc (Peak amb, blue, green, white)
Watts: 4.6 watts (red), 7.7 watts (amber, blue, green, white)
Operating Temperature: -40° C to +65° C / -40° F to +149° F
LED Color Options: Amber, blue, green, red, white
LED Color Options & Count: Single color – 6 & 8 LEDs, dual color – 12 LEDs, tricolor – 18 LEDs
Flash Patterns: Over 140 flash patterns
Material: Galvannealed steel brackets, silicone LED modules
Dimensions (1 piece, 6 mod including brackets): 12.5” L x 1.5” D x 1.25” H
Dimensions (1 piece, 8 mod including brackets): 17.5” L x 1.5” D x 1.25” H
Certifications: SAE J595, SAE J845, CA Title 13
Arrow Patterns: 11 arrow patterns
Electrical Protection: Reverse polarity and load dump protected
Standby Current:
- < 1.0 Amp @ 12.8 VDC
- < 0.5 Amp @ 25.6 VDC
