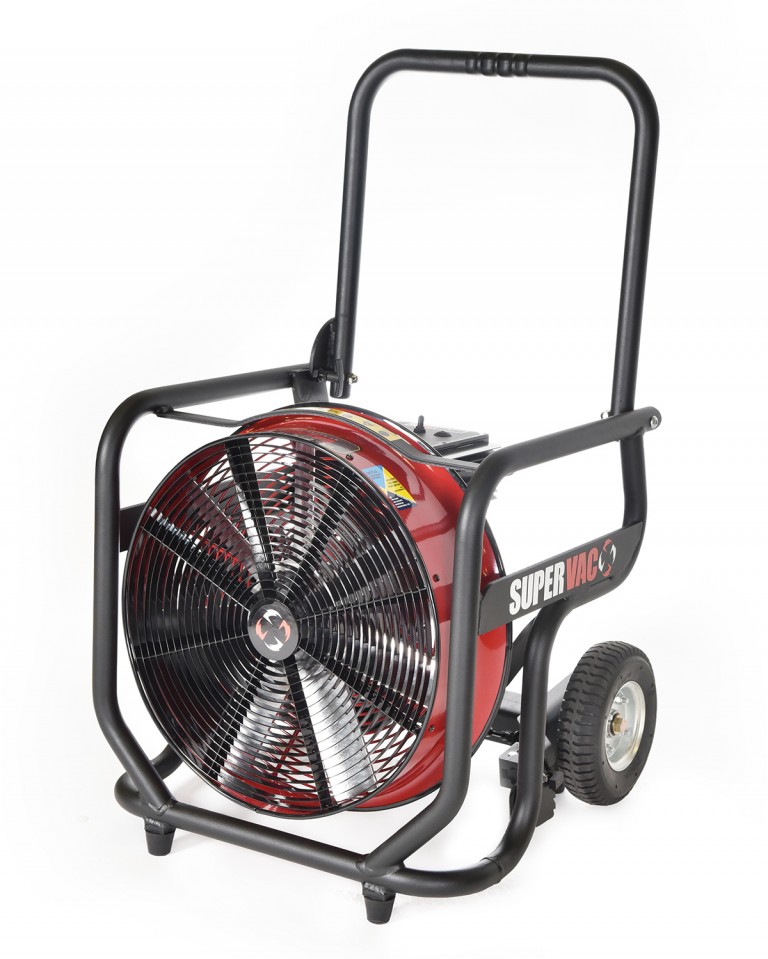

The Valor is one of the newest frames from SuperVac, featuring a lightweight, patented aluminum design that is easy to position on the fireground thanks to its 7-position tilt.
- Available sizes: 18”, 20”
- Available motors: Single-speed,
variable-speed, hazardous location
Full Roll-Cage Frame:
Features a tough, tubular aluminum frame to protect key components; delivers a lightweight design (15% lighter than steel frames)
7-Position Tilt Frame with Step Pad:
Fold-Down Ergonomic Handle:
Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
Flat-Proof Rubber Tires:
Eliminates flat tires; rolls up stairs and curbs easily; tires are placed on the back of the frame so that firefighters never have to put themselves between the PPV and the fire during setup
Single-Piece Cast Aluminum Blade:
Holds up better than plastic in high heat
Precision-Spun Steel Shroud:
Provides durability with maximum airflow
StreamShaper Guard:
Standard guard, designed for farther setback; Air Cone Guard available by request See the difference >
AMCA-Certified Airflow:
Super Vac is proud to enlist AMCA as an important organization to conduct third-party performance tests.
| VALOR | WEIGHT | FAN SIZE HxWxD | MOTOR | RPM | START | RUN | SETBACK | ANGLE | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|---|
| 18″ Blades |
V18-ES | 80 lbs 36.5 kg |
23.5″ x 22″ x 21″ 600 x 560 x 535 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,783 | 4,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
13º | 6,378 cfm 10,836 cmh |
| V18-EX | 90 lbs 41 kg |
23.5″ x 22″ x 21″ 600 x 560 x 535 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,783 | 4,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
13º | 6,378 cfm 10,836 cmh |
|
| V18-EV | 84 lbs 38 kg |
23.5″ x 22″ x 21″ 600 x 560 x 535 mm |
RAE, TEAO variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,368 | 2,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
11.5º | 11,709 cfm 19,894 cmh |
|
| 20″ Blades |
V20-ES | 82 lbs 37 kg |
26.5″ x 25″ x 21.5″ 675 x 635 x 550 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,758 | 4,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
10º | 9,007 cfm 15,302 cmh |
| V20-EX | 92 lbs 42 kg |
26.5″ x 25″ x 21.5″ 675 x 635 x 550 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,758 | 4,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
10º | 9,007 cfm 15,302 cmh |
|
| V20-EV | 86 lbs 39 kg |
26.5″ x 25″ x 21.5″ 675 x 635 x 550 mm |
RAE, TEAO variable speed, 1 HP, 50/60Hz, 115/230V AC |
3,131 | 2,000 w 15-amp circuit |
1,500 w | 9 ft 2.7 m |
11º | 13,788 cfm 23,426 cmh |
|
