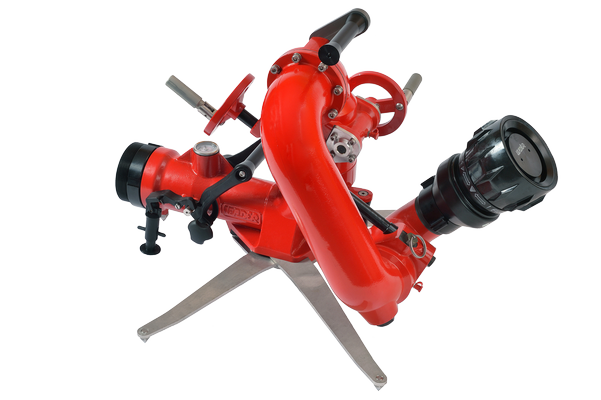

Convertible Monitor – 5000 l/min VECTOR 2

5000 l/min Portable Ground Monitor EN15-767 certified:

  • With safety valve
  • Vector monitor consists of a turret and a base
  • Flow up to 5000 l/min
  • Base,with safety shut off in case of movement, is equipped with large carrying handle, protected pressure gauge:
    • Compact when folded
    • 4 stainless steel flexible feet
    • 5 tungsten carbide spikes
    • Swivel inlets: 2x 2.5’’ BSP F or 4’’ BSP M
  • Turret is equipped with large carrying handle and hand wheels for elevation and rotation adjustment. Thanks to hand wheels no need to lock manually the position, locking is automatic:
    • High elevation up to 85°(from 25°)
    • Rotation from 120° left to 80° right
    • Automatic draining valve

Download datasheet here
