THE ONLY TRIPOD WORK LIGHT THAT LETS YOU CHOOSE …
YOUR POWER SOURCE + LEDS DESIGNED FOR THE FIREGROUND
Looking for a mobile light source? Command Light continues to elevate scene lighting, this time revolutionizing the tripod lighting market with the introduction of the all-NEW Trident Tripod Light, the only tripod of its kind that lets departments choose their power source, plus their favorite firefighter LED. Pair AC Power, Truck 12V DC or one of four different non-proprietary battery options with Akron Revels, FRC Spectras, FireTech Helios, Whelen PioneerPlus,Feniex Arrow Stick or a Federal Message Bar.

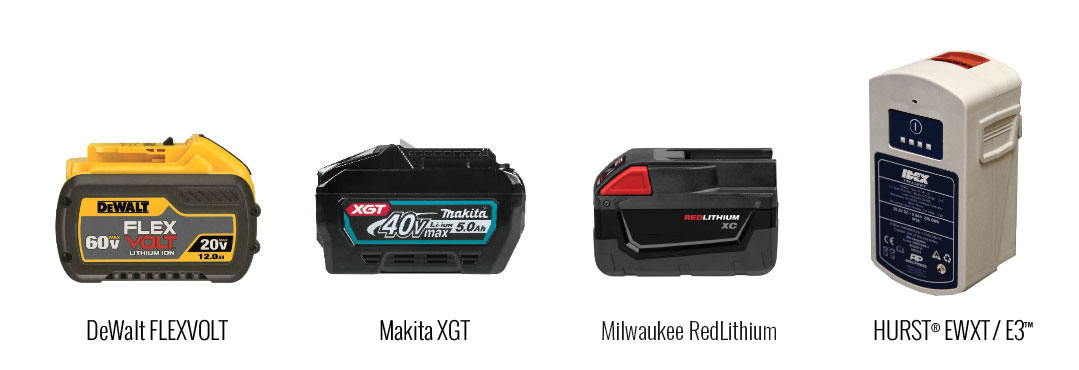

AVAILABLE POWER SOURCES
AVAILABLE LED FIXTURES
DC-POWERED TRIPODS
| DC | LIGHTING | POWER REQ. |
WEIGHT* | TOTAL OUTPUT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CHOOSE YOUR FAVORITE FIREGROUND LED FIXTURE | ||||||||||||||
| TXXD-FN-BX | FRC Mini Spectra x 1 | 130W | 35 lbs 16 kg |
14,000 lumens |
||||||||||
| TXXD-FR-BX | FRC Eco Radiant x 1 | 120W | 35 lbs 16 kg |
17,000 lumens |
||||||||||
| TXXD-FS-BX | FRC Spectra x 1 | 220W | 30 lbs 13 kg |
20,000 lumens |
||||||||||
| TXXD-W1-BX | Whelen PCH1 x 1 | 75W | 25 lbs 11 kg |
10,130 lumens |
||||||||||
| TXXD-W12-BX | Whelen PCH1 x 2 | 150W | 35 lbs 16 kg |
20,260 lumens |
||||||||||
| TXXD-W2-BX | Whelen PFH2 x 1 | 150W | 30 lbs 13 kg |
20,261 lumens |
||||||||||
| TXXD-CH-BX | FireTech Helios x 1 | 60W | 30 lbs 13 kg |
14,000 lumens |
||||||||||
| TXXD-CH2-BX | FireTech Helios x 2 | 120W | 45 lbs 20 kg |
28,000 lumens |
||||||||||
| TXXD-AR-BX | Akron Revel SL x 1**** | 110W | 25 lbs 11 kg |
14,000 lumens |
||||||||||
| TXXD-AX-BX | Akron Revel XL x 1**** | 220W | 35 lbs 16 kg |
28,000 lumens |
||||||||||
| TXXD-LB-BX | Feniex Light Bar*** | 60W Max |
35 lbs 16 kg |
Arrow patterns and floodlight |
||||||||||
| TXXD-FBA-BX | Amber Federal Message Bar | 90W Max |
35 lbs 16 kg |
Digital message in amber | ||||||||||
| TXXD-FBB-BX | Blue Federal Message Bar | 90W Max |
35 lbs 16 kg |
Digital message in blue | ||||||||||
BX = DC POWER SOURCE OPTIONS
Replace BX with battery designator and battery choice from the power option chart below:
TXX = TRIPOD HEIGHT
T40 = 40″ Tripod or T50 = 50″ Tripod
* Weights listed with no options.
** Reported run times based on fully charged batteries at 70° F; temperature and battery condition can impact tripod performance. Light blinks three times to warn of low-battery conditions.
*** Light/message board run times based on floodlight pattern. Multiply minutes by 2 for average arrow patterns.
**** HURST-powered tripods are only available with Akron Revel fixtures or light/message boards.
