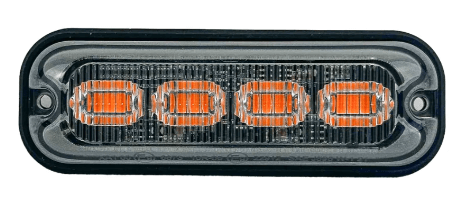

Introducing the BASE6 4 LED Perimeter Light, a top choice for those seeking superior visibility and durability. This high-performance light features an innovative angled design for enhanced off-axis visibility, ensuring maximum safety and awareness. Its robust alloy housing and cutting-edge LED technology make it a reliable, maintenance-free solution for any vehicle.
Key Features and Specifications
BASE6 5-Year Warranty
- Dimensions: 91mm (L) x 23mm (W) x 15mm (H)
- LEDs: 4 Ultra-High Intensity LEDs
- Flashing Patterns: 19+ user-selectable options
- Improved Visibility: Advanced off-axis performance with unique directional reflector optics
- Daytime Performance: Exceptional brightness for all-day use
- Housing: Low profile, heavy-duty alloy construction
- Synchronization: Capable of synchronizing multiple units
- Maintenance-Free: 100% solid state design with no moving parts
Wiring Configuration
- BLACK: Negative ground wire
- RED: Positive wire
- YELLOW: Pattern select (positive trigger) and synchronize function
- WHITE: Simultaneous or alternating flash
Technical Specifications
- Current Draw: 1amp @12vdc / 0.5amp @24vdc
- Certifications: R65, SAE Class 1 & 2, SAE J595
- Voltage: 10-30 multi voltage ready
- Durability: IP69K rated for dust, vibration, and water resistance (highest in the market)
- Temperature Range: Operates efficiently from -40˚C to +60˚C
- LED Lifespan: 100,000 hours with long-life LEDs
Elevate your vehicle’s safety and performance with the BASE6 4 LED Perimeter Light. Its unmatched reliability and advanced features make it the ideal choice for any application.
