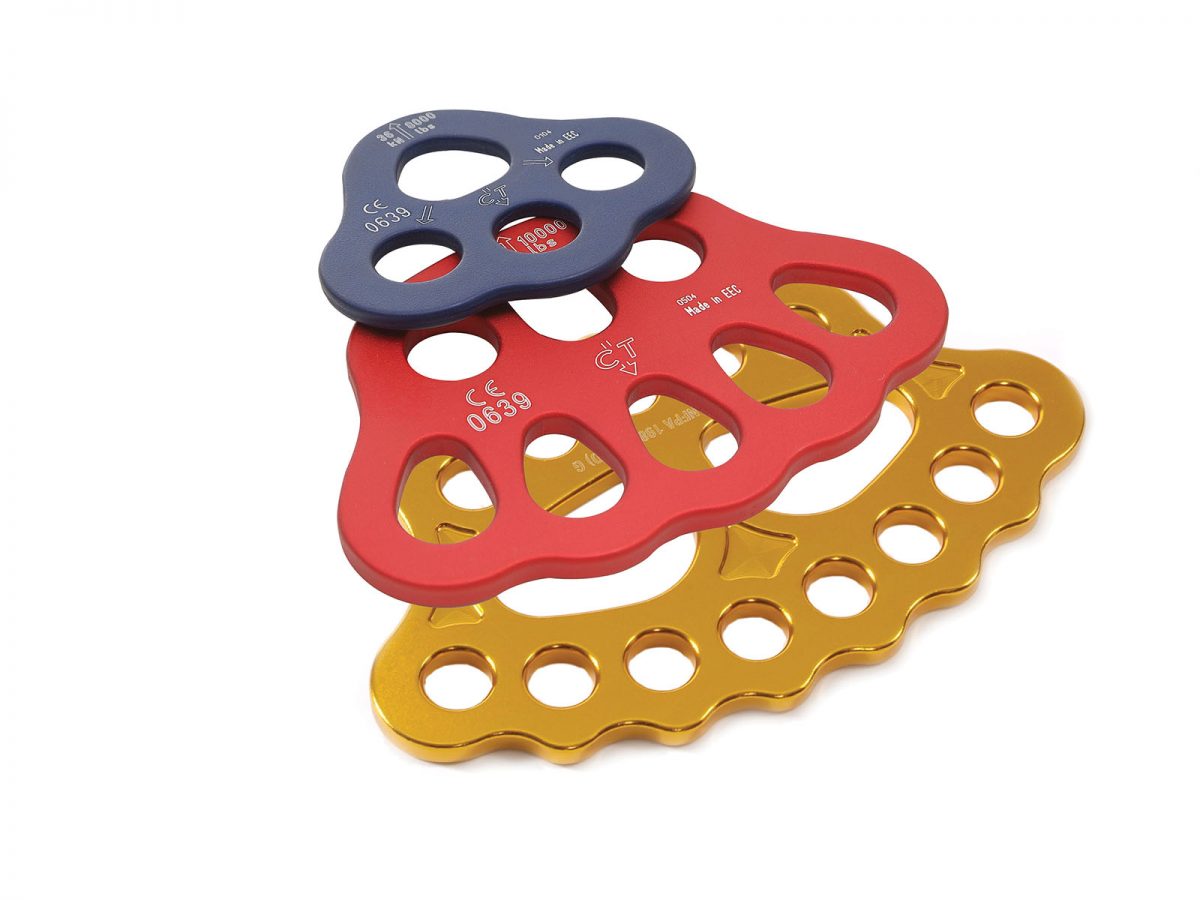

Anchor Plates allow you to create and organise your anchor systems safely. These Anchor Plates are made from high grade aluminium alloy.
Anchor Plates are available in four, eight or fifteen hole options.
Codes:
VCT L6370303 – 4 holes
VCT L6370503 – 8 holes
VISC RP320A – 15 holes
| MODEL | CODE | DIMENSIONS LxW |
WEIGHT | BREAKLOAD | HOLE DIAMETER |
|---|---|---|---|---|---|
| 4 Hole | VCT L6370303 | 96.5 x 83 mm | 63 g | 36kN | 20 mm |
| 8 Hole | VCT L6370503 | 149 X 98 mm | 136 g | 45kN | 20 mm |
| 15 Hole | VISC RP320A | 249 x 150 mm | 471 g | 55kN | 19 mm |
